PRO-MS-3001A_Intercom system

PRO-MS-3001A

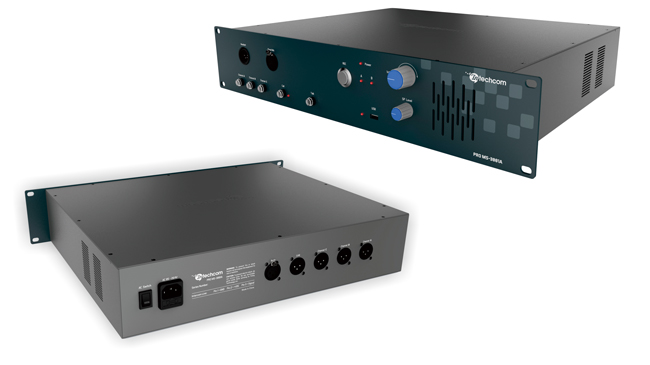

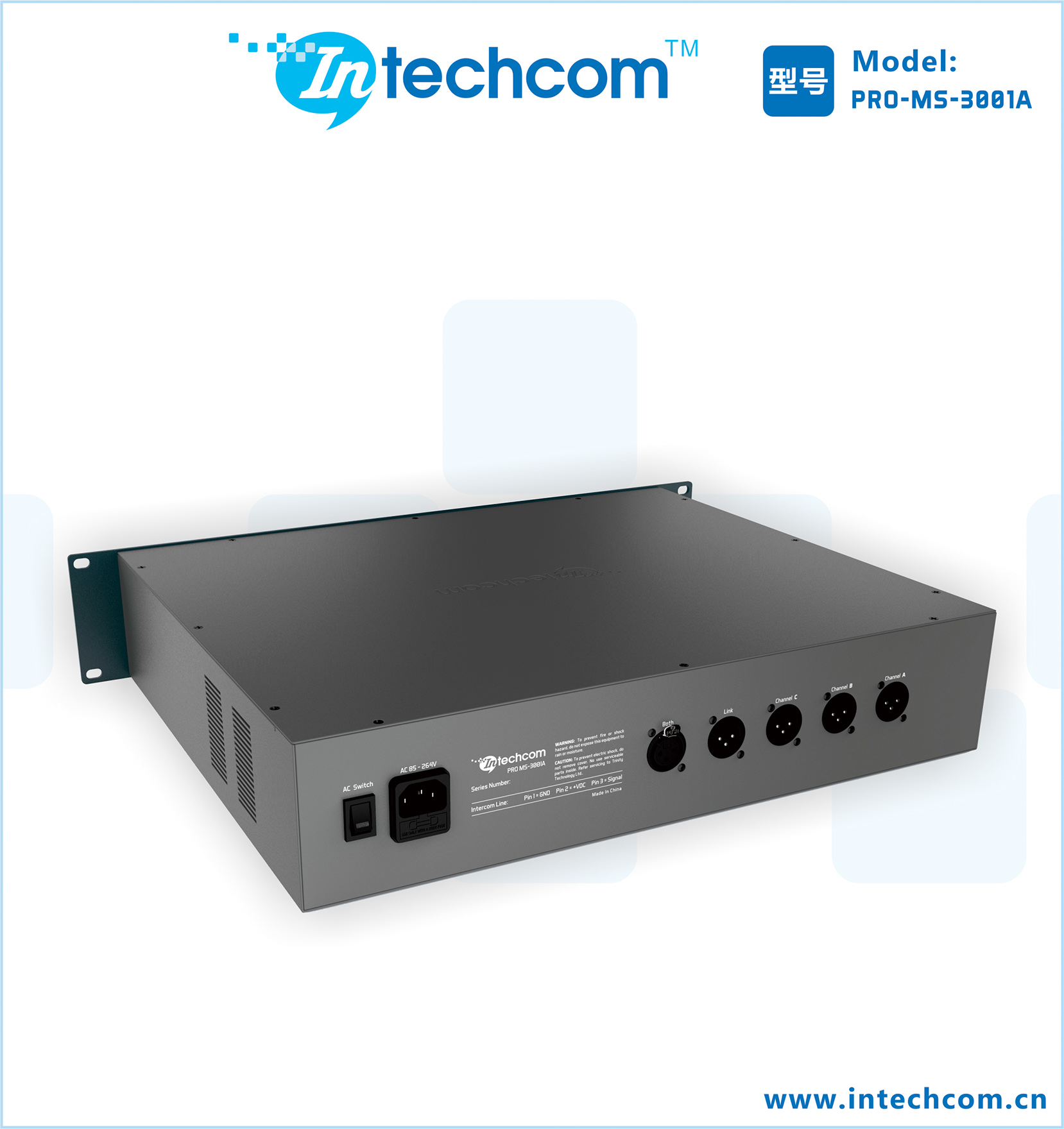

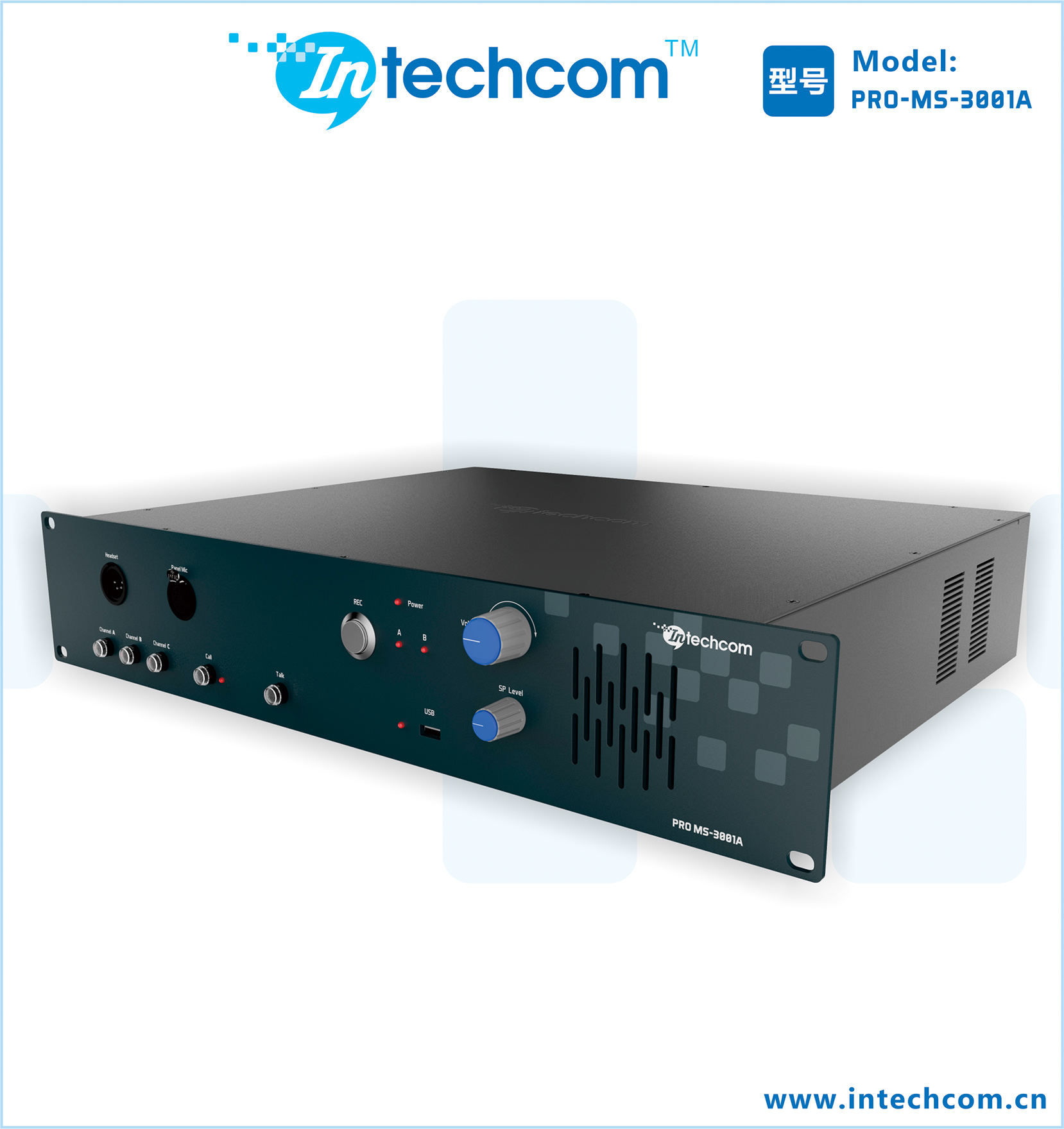

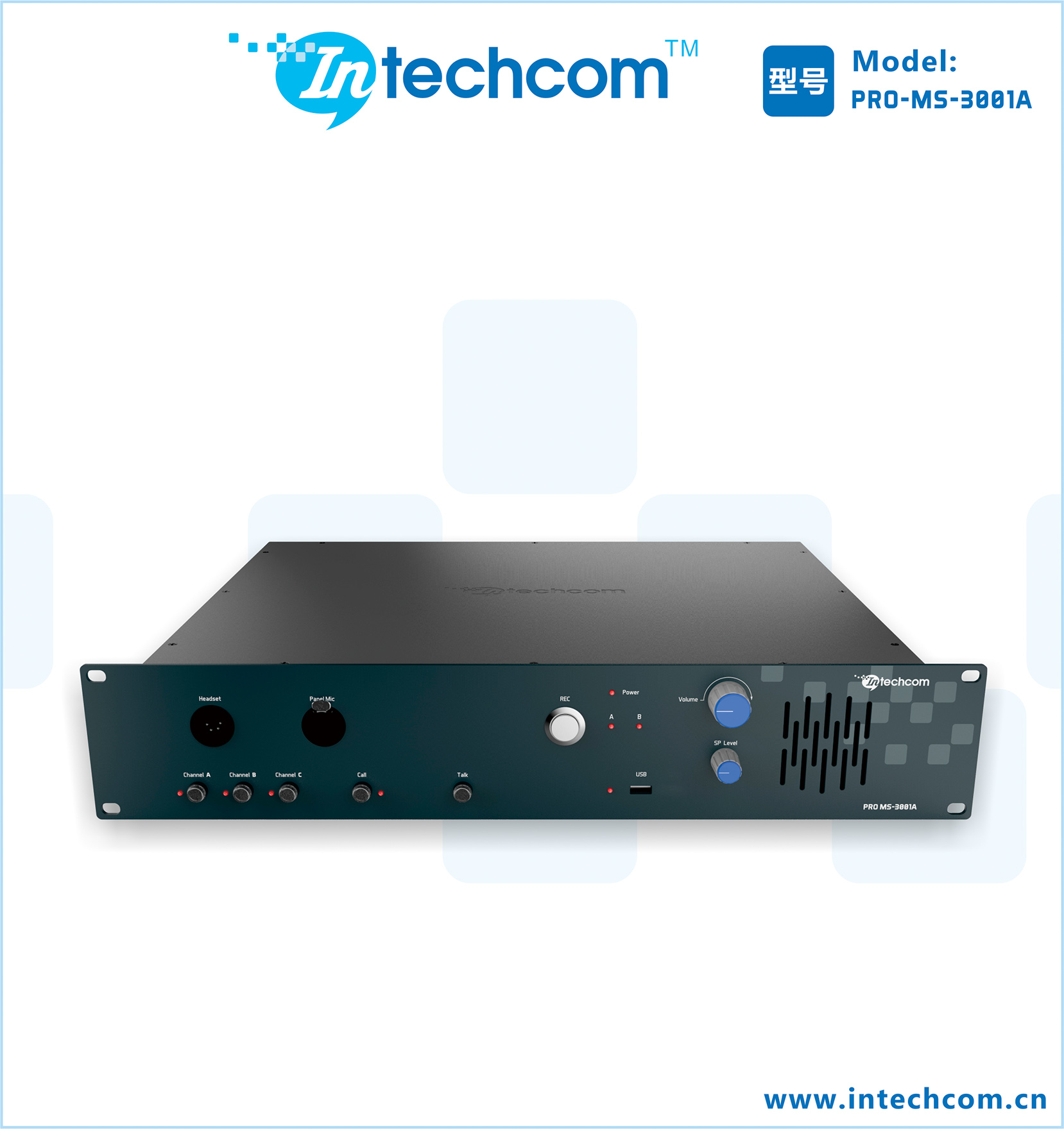

Performance. The following Performance: are for the Intechcom PRO-MS-3001A Master Station . 1. The Pro-MS-3001A is a 3-Channel Master Stations with a unique hybrid configuration, the 3 channel can be operated independently or linked in A+B and A+B+C mod

DETAILS

	Performance .
	The following Performance: are for the Intechcom PRO-MS-3001A Master Station . 1. The Pro-MS-3001A is a 3-Channel Master Stations with a unique hybrid configuration, the 3 channel can be operated independently or linked in A+B and A+B+C modes. 2. High-quality audio characteristic 3. 3-channel intercom operation plus additional program sound on XLR cables 4. Record function 5. Dual power supply with automatic change over function 6. Real-Time circuitry for video, audio & communications 7. Pro-MS-3001A is expandable modular designs and compatible with most other unbalanced party-line intercom devices 8. Front panel controls provide for turning volums control which regulates the level of the loudspeaker

	Technical Specifications:
	·Ac power input:85~264V. ·Power output: 24 volts DC regulated @ 2.5A continuous ·Power consumption: (At 220V/AC) 550W. ·Transducer impedances: Mic: 200 Ohms dynamic . ·Earphone impedances: 400 Ohms . ·Dimensions: (H x W x D): 88.9 x 482.6 x 178.2mm ·Weight: 5.8kg
