PRO-SS-1001

Performance. 1. Intechcom Pro-SS-1001 Talkback Loudspeaker Stations operate in one channel modes. 2. Simultaneous talk and listen [full duplex] , when a gooseneck microphone is plugged into the front panel. 3. 50 Watt audio amplifier and quality loudsp

DETAILS
  Performance.
  1. Intechcom Pro-SS-1001 Talkback Loudspeaker Stations operate in one channel modes.
2. Simultaneous talk and listen [full duplex] , when a gooseneck microphone is plugged into the front panel.
3. 50 Watt audio amplifier and quality loudspeaker provide highly intelligible reproduction.

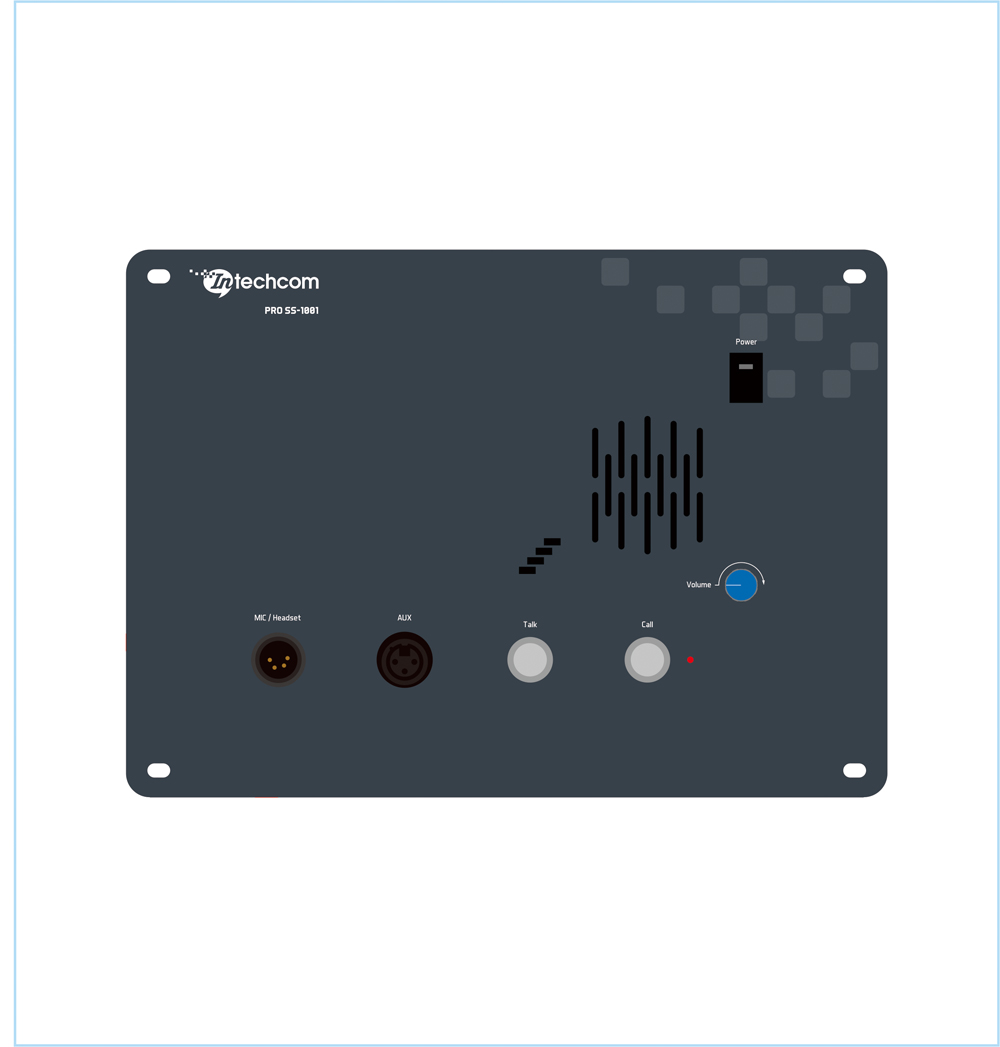

4. Front panel controls provide a volume control which regulates the level of the loudspeaker.
5. Main power switch(Front Panel)illuminated ,Indicates AC voltage present .
6. The‘ Call‘push button flashes a light in all outstations connected to your circuit. It is used to attract attention in the event that a user has removed his/her headset.
7. The ‘Talk’ button and turn up the ‘Listen level’ control on your unit and others on the same circuit as your - self ,you should now be able to communicate with any of these other outstations.
8. The Pro-SS1001 station allowing many beltpacks to be connected together.
without significantly changing the circuit performance. The termination networks are automatically removed and inserted during circuit linking to ensure a constant impedance for all circuits .



  Technical Specifications:

·Ac power input:85~264V.
·Power output: 24 volts DC regulated @ 2.5A continuous .
·Power consumption : (At 220V/AC) 550W.
·Transducer impedances: Mic: 200 Ohms dynamic .
·Dimensions: (H x W x D): 110 x 320 x 230mm
·Weight: 2.6kg
