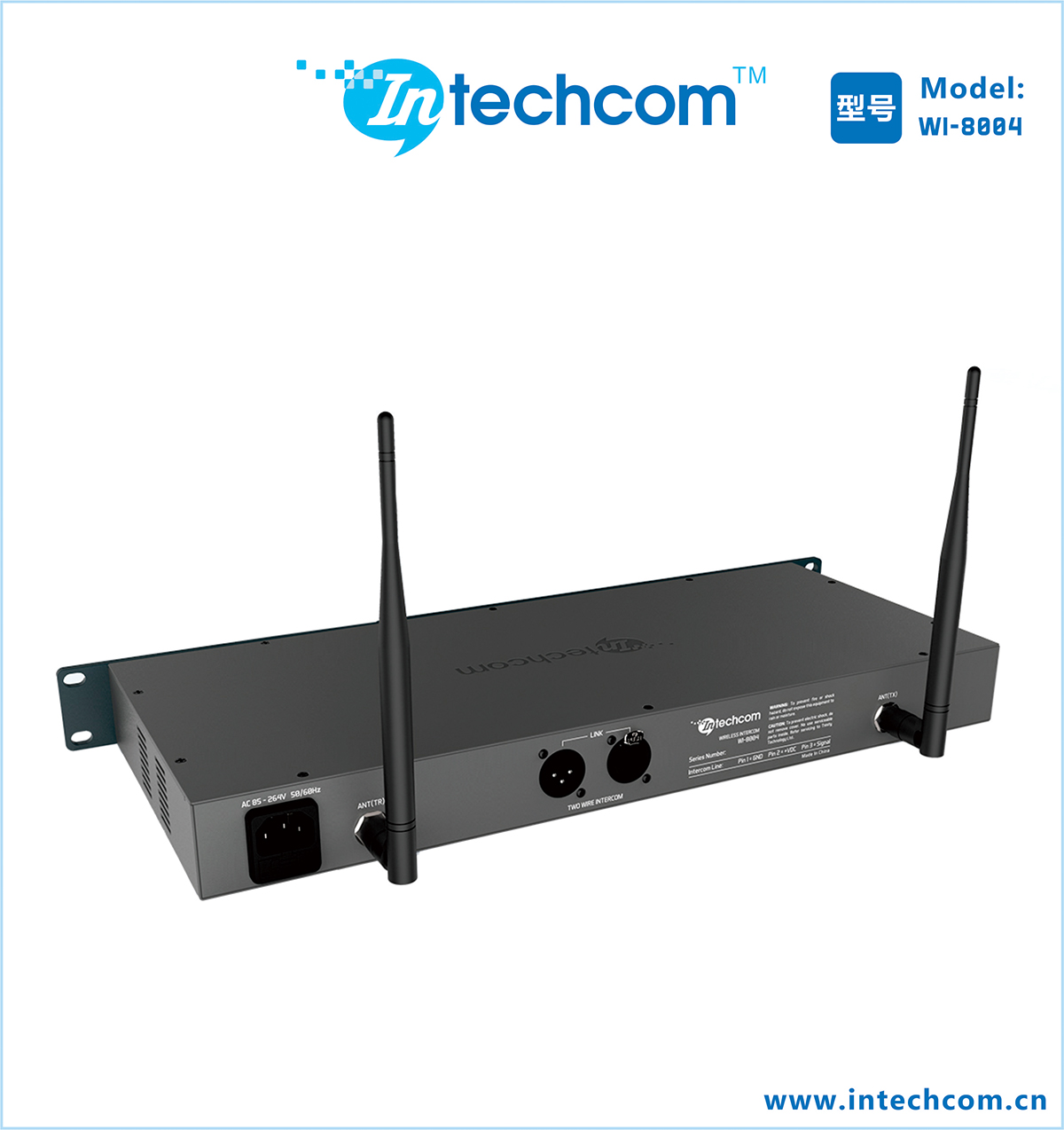

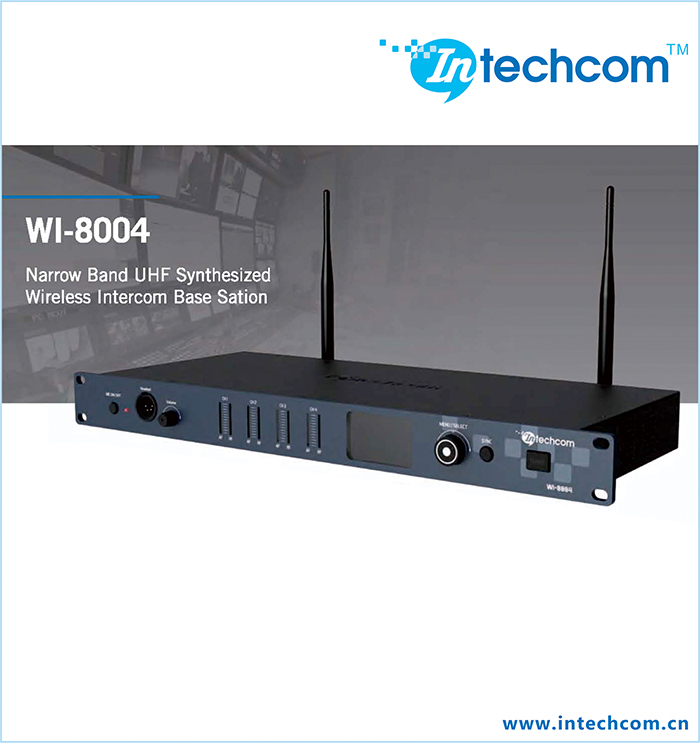

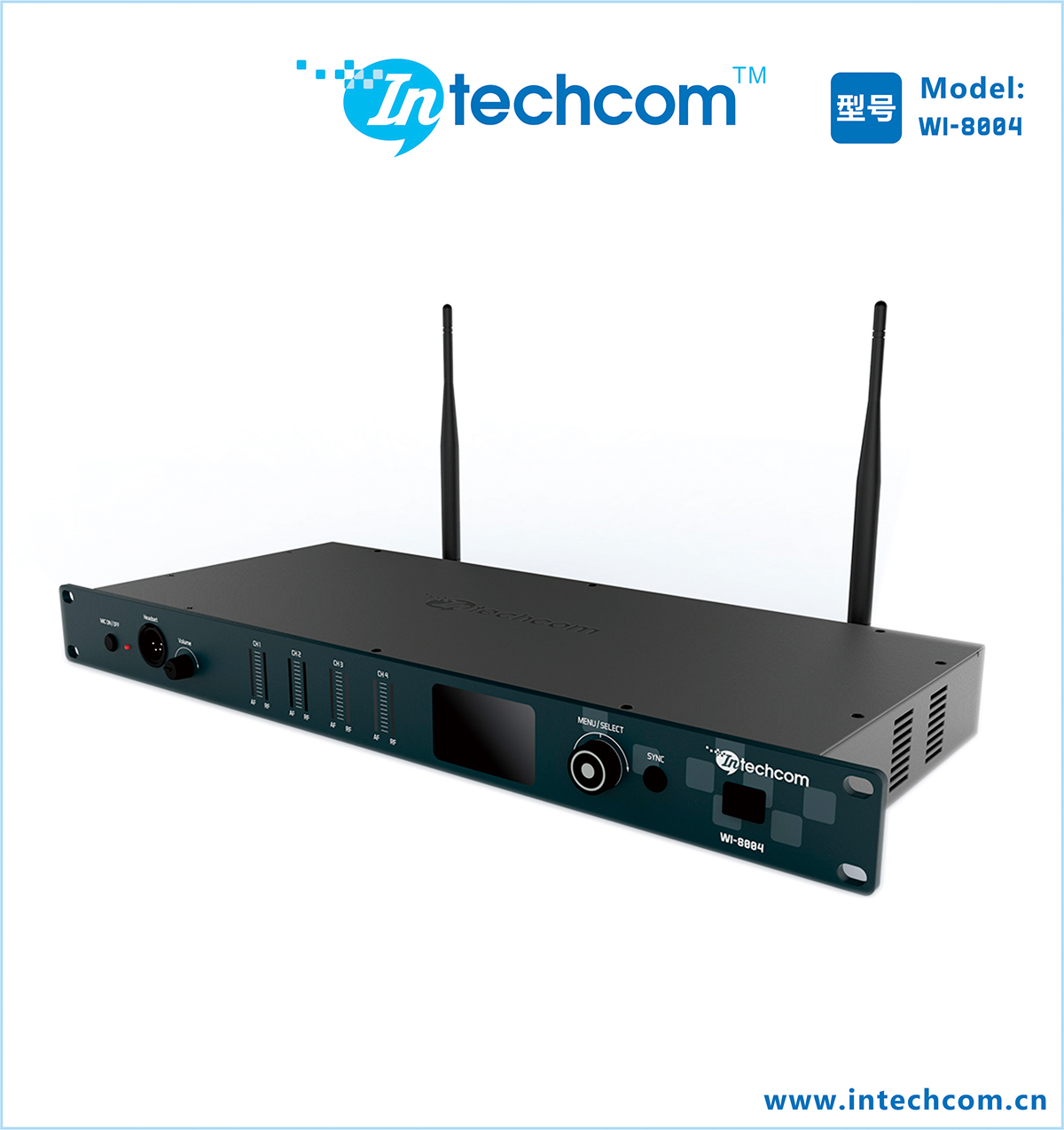

WI-8004
Narrow Band UHF Synthesized Wireless Intercom Base Sation
|
|
|
Features Specifications
· Base Station LCD Allows the User to easily moniter the beltpack’s status
· Base Stations are Table or Rack Mountable
· Automatically or Manual Finds the Best Channels on Which to Operate
· Compatible with Telex, Clear-Com, & Other Wired Intercom Types
· Convenient IEC Power Connector on the Base Station
· Full Duplex (Simultaneous Talk & Listen ) Operation
· Talk Button and Volume Control
|
|
|
|
|
|
Color |
Black |
|
Height |
1.72”(42.7 mm)
|
|
Depth |
14”(355.6 mm) |
|
Width |
3.75”(482.6 mm) |
|
Weight |
7.12 Ibs(3.23kg) |
|
Power Requirements |
100-240 VAC, 50-60 Hz, IEC receptacle |
|
Storage Temperature |
-4︒F to 130︒F (-20︒C to 55︒C) |
|

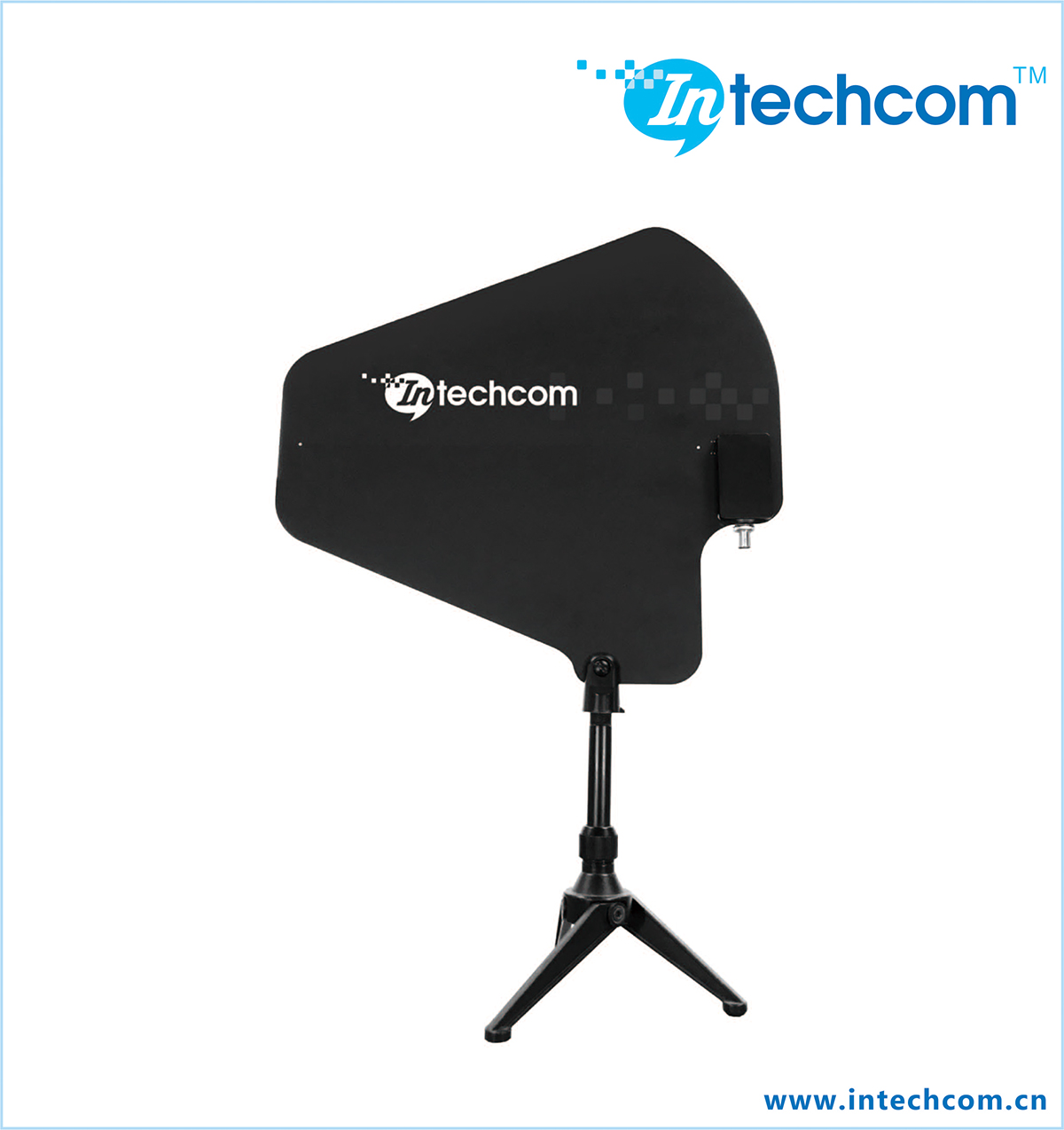

Antenna |
1/4 |
|
Form Factor Rack Mount |
19” |
|
Freuqency Band of Operation |
470-608 MHz, 614-740 MHz |
|
Freuqency Response |
300 Hz -8 KHz |
|
Local Headset Output |
40 mW output into 600Ώ1%Distortion |
|
Microphone Input Sensitivity |
9 mv |
|
Modulation Type |
FM |
|
Radiatep Harmonics and Spurious |
Exceeds FCC specifications |
|
RF Frepuency Range |
470-608 NHz, 614-740 MHz |
|
RF Frepuency Stability |
≦2.5PPM |
|
Transmit Power |
100 mW Max.(High ),10 Mw(Normal) |
|
Wireless Technology |
UHF |
|
Modulation Limiter Peak-Responding Compressor |
|
|
|
|
|
|
|
|
|
|
