WBP-9001__intechcom

WBP-9001

The revolutionary WI-8004 / WBP-9001 wireless intercom system adopts the ultra-high frequency spectrum transmission technology, and combines the excellent performance of narrowband technology and other innovative functions. Therefore, it is one of the bes

DETAILS

WBP-9001

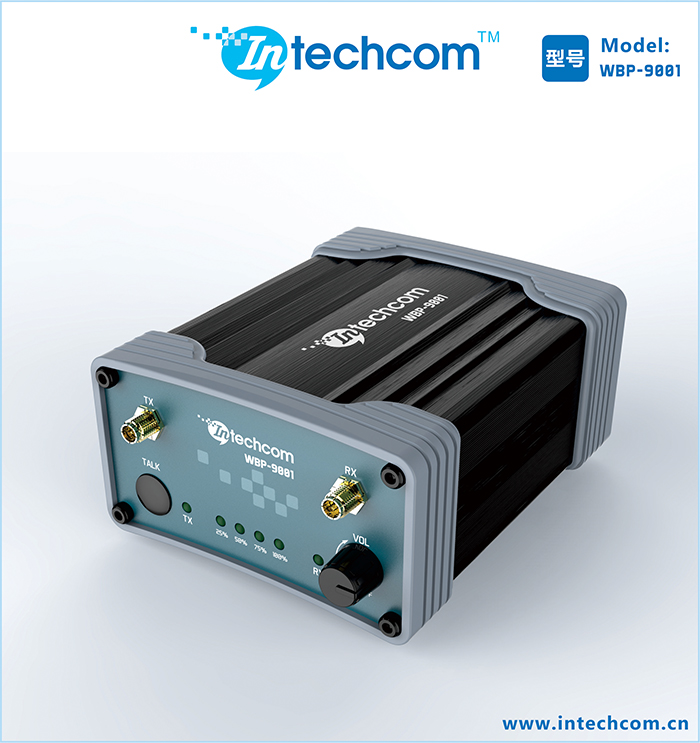

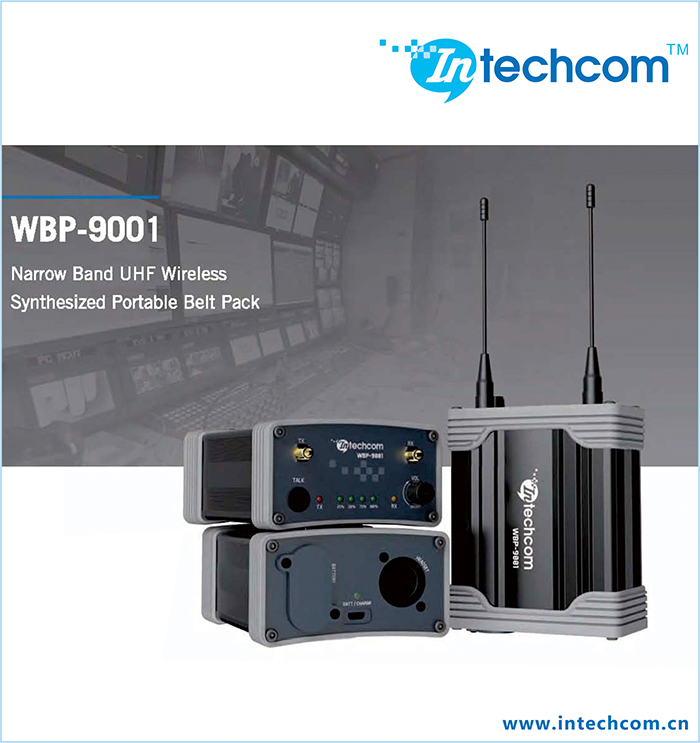

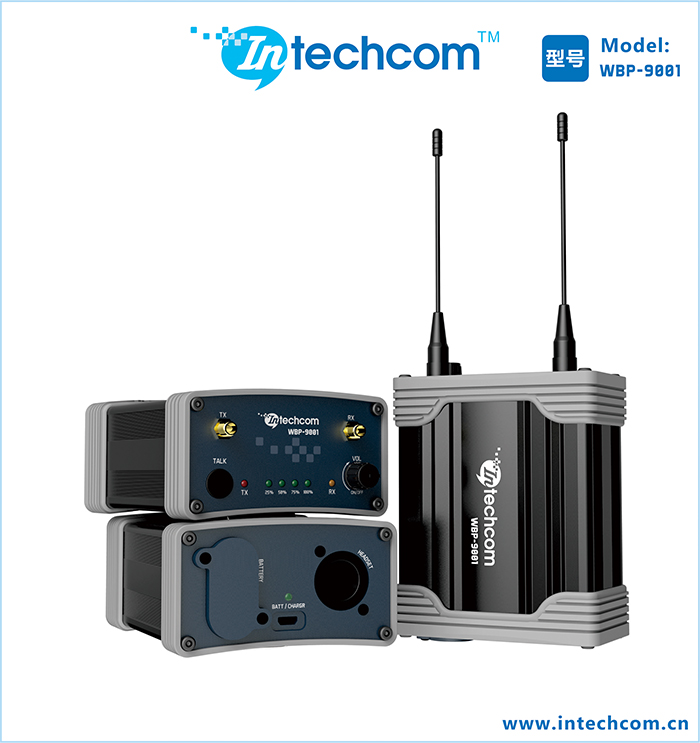

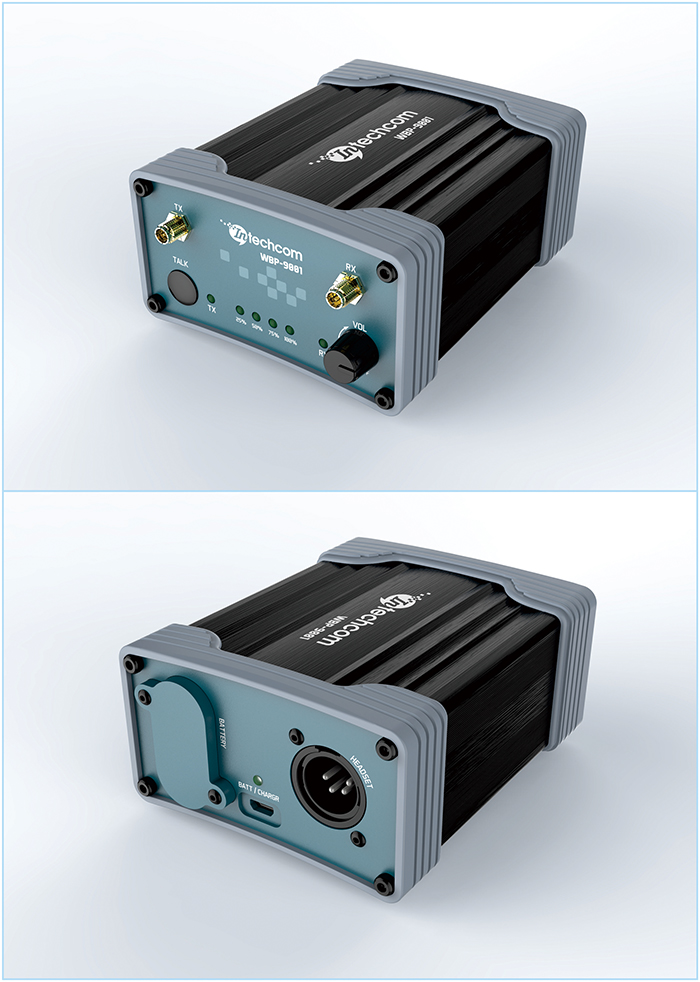

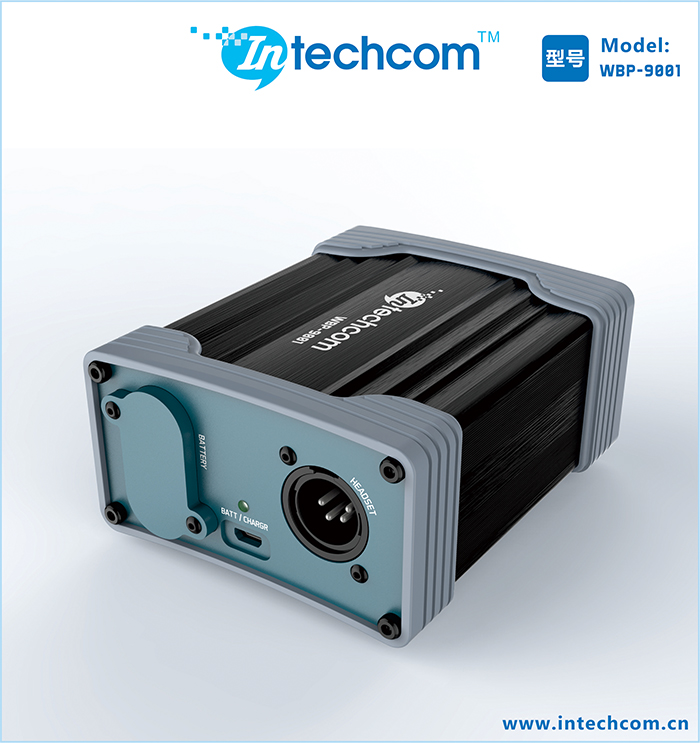

WBP-9001 Narrow Band UHF Wireless Synthesized Portable Base Pack

Features Specifications

· Channel Select Button

· Low Battery Light

· On/Off & Volume Control

· Receiver RF Indication

· Transmission RF Indication

· Talk Button

Color	Black

Height	1.65”(41.9 mm)

Depth	5.05”(125.3 mm)

Width	3.75”(482.6 mm)

Weight	1.81 Ibs(0.82kg)

Power Requirements	2 x 3.7v Battery (@3000mA)

Operating Temperature	-4︒F to 130︒F (-20︒C to 55︒C)

Antenna	1/4 Wave (supp;ied), Screw type, Replaceable Tx and RX

Current Draw	140 mA Push-to-Talk, Talk On

Distortion	<1% at full deviation

Charge Port	mini-USB

FCC ID	B5DM518 (TX 470-608 MHz) B5DM515 (TX 614-746 MHz)

Transmit Power	100mw / 10MW

Frequency Response	300 Hz - 8 KHz

Image Rejection	70 dB or better

Local Headset Output	40 mW output into 600W 1％ Distortion

Microphone Input Sensitivity	7mW

RF Frequency Range	470-608 MHz, 614-740 MHz

RF Frequency Stability	≦2.5PPM

RF Senstvity	<0.7 µV for 12 Db SINAD

Squelch Threshold	20 dB SINAD About 1.0 µV
